What is a Teflon Sheet (PTFE Sheet)?
A composite material combining the strength of fiber with the performance of fluororesin
Teflon sheets are high-performance composite sheets made from glass fiber or aramid fiber fabric, uniformly impregnated and coated with PTFE (polytetrafluoroethylene). They combine the structural strength of the fiber base with the key properties of fluororesin: heat resistance, non-stick surface, low-friction properties, and chemical resistance.
Custom sizes are available, along with additional processing such as eyelet installation, sleeve processing, and reinforcement. These sheets are used across a wide range of industries including garment and textile, food, packaging, paper, and electronics.
Cross-Section Structure
(Glass Fiber)
(Aramid Fiber)
& Mesh
Sheet Types
Choose from two main types to match your application.
Tightly woven fibers with no open gaps
Plain Weave Type (Fabric)
Tightly woven fiber fabric with a uniform PTFE coating applied throughout
Primary use: Release, Low-Friction, Insulation, Impermeability
- Very smooth surface with high thickness accuracy
- Blocks liquids (water, oil, chemicals) and air from passing through
- Much higher tensile strength than mesh type; resists stretching
- Maintains stable shape even under strong tension in conveyor belt or precision positioning processes
- Less likely to leave marks on workpieces; easy to clean and maintain
Open mesh allows steam and hot air to circulate
Mesh Type
Open mesh woven fiber fabric with air permeability
Primary use: Ventilation, Drying, Cooling, Weight Reduction
- Retains the excellent properties of fluororesin while allowing steam and hot air to circulate through the openings
- Ideal for food drying, shrink tunnel conveyor belts, UV drying, and hot air drying processes
- Maintains non-stick performance while significantly improving drying efficiency and cooling speed
- Lighter than plain weave type; reduces load on conveying equipment
| Plain Weave Type | Mesh Type | |
|---|---|---|
| Primary Use | Release, Low-Friction, Insulation, Impermeability | Ventilation, Drying, Cooling, Weight Reduction |
| Liquid Permeability | None | Yes |
| Surface Condition | Smooth | Open mesh texture |
| Tensile Strength | Very High | High (depends on mesh opening) |
Color Options and Functions
Standard (Beige)
Standard Type
A well-balanced type offering the full properties of fluororesin at excellent value. Widely used across many applications for its superior release performance, heat resistance, and low-friction properties.
Anti-static (Black)
Anti-static Type
Conductive materials such as carbon are blended in to lower the surface resistance. Prevents dust adhesion from static electricity, protects electronic components from electrostatic discharge, and eliminates unpleasant shocks to operators.
Anti-static (White)
Anti-static + UV Resistance
Suited for environments that require a clean appearance. In addition to anti-static performance, it offers excellent UV resistance, making it highly durable near ultraviolet irradiation equipment and extending service life.
※ Values shown are typical values, not guaranteed specifications. Subject to change without notice.
※ ○ indicates products confirmed to comply with Japan Food Sanitation Act (Act No. 46, 2018) for tools and food containers/packaging.
Glass Fiber Base (Max. Operating Temp. 260℃)
● Plain Weave Type
| Type | Thickness (mm) |
Weight (g/m²) |
Tensile Strength (N/cm) | Std. Width (mm) |
Max. Width (mm) |
Food Safety |
|
|---|---|---|---|---|---|---|---|
| Warp | Weft | ||||||
| Standard (Beige) | 0.048 | 80 | 100 | 90 | 1,000 | 1,000 | ○ |
| 0.075 | 125 | 170 | 130 | 1,000 | 1,200 | ○ | |
| 0.10 | 170 | 320 | 195 | 1,000 | 1,200 | ○ | |
| 0.13 | 265 | 310 | 290 | 1,000 | 1,200 | ○ | |
| 0.18 | 370 | 375 | 345 | 1,000 | 1,200 | ○ | |
| 0.24 | 480 | 535 | 450 | 2,400 | 3,000 | ○ | |
| 0.34 | 605 | 830 | 625 | 2,400 | 3,000 | ○ | |
| 0.53 | 1,050 | 1,085 | 850 | 2,400 | 3,000 | ○ | |
| 0.55 | 805 | 1,035 | 745 | 2,000 | 2,000 | ○ | |
| 0.89 | 1,220 | 1,390 | 1,265 | 2,400 | 3,000 | ○ | |
| Anti-static (Black) | 0.13 | 265 | 315 | 300 | 1,000 | 1,200 | — |
| 0.23 | 470 | 550 | 485 | 2,400 | 3,000 | — | |
| 0.34 | 630 | 815 | 635 | 2,400 | 3,000 | — | |
| Anti-static (White / UV-res.) | 0.24 | 490 | 530 | 420 | 2,400 | 3,000 | — |
| 0.35 | 625 | 795 | 570 | 2,400 | 3,000 | — | |
● Mesh Type
| Type | Thickness (mm) |
Mesh Size W×H |
Weight (g/m²) |
Tensile Strength (N/cm) | Std. Width (mm) |
Max. Width (mm) |
Food Safety |
|
|---|---|---|---|---|---|---|---|---|
| Warp | Weft | |||||||
| Standard (Beige) | 0.90 | approx. 1.5×1.5mm | 620 | 910 | 790 | 1,500 | 3,000 | ○ |
| 0.60 | approx. 1×1mm | 515 | 550 | 775 | 900 | 1,000 | ○ | |
| 0.65 | approx. 1×1mm | 550 | 680 | 675 | 1,500 | 2,000 | ○ | |
| 0.98 | approx. 4×4mm | 485 | 535 | 570 | 2,600 | 3,000 | ○ | |
| Anti-static (Black) | 0.98 | approx. 4×4mm | 550 | 495 | 515 | 1,500 | 3,000 | — |
| Anti-static (White / UV-res.) | 0.98 | approx. 4×4mm | 565 | 345 | 355 | 1,500 | 3,000 | — |
※ Mesh size values are measured values, not guaranteed specifications.
Aramid Fiber Base (Max. Operating Temp. 230℃)
● Plain Weave Type
| Type | Thickness (mm) |
Weight (g/m²) |
Tensile Strength (N/cm) | Std. Width (mm) |
Max. Width (mm) |
Food Safety |
|
|---|---|---|---|---|---|---|---|
| Warp | Weft | ||||||
| Standard (Beige) | 0.20 | 225 | 540 | 540 | 1,000 | 1,000 | ○ |
| 0.31 | 400 | 1,530 | 1,400 | 1,000 | 1,000 | ○ | |
| 0.35 | 540 | 970 | 970 | 1,900 | 2,000 | ○ | |
| 0.35 | 560 | 950 | 1,010 | 1,900 | 2,000 | ○ | |
| 0.52 | 680 | 1,210 | 1,510 | 2,400 | 2,900 | ○ | |
● Mesh Type
| Type | Thickness (mm) |
Mesh Size W×H |
Weight (g/m²) |
Tensile Strength (N/cm) | Std. Width (mm) |
Max. Width (mm) |
Food Safety |
|
|---|---|---|---|---|---|---|---|---|
| Warp | Weft | |||||||
| Standard (Beige) | 0.85 | approx. 2.5×2mm | 420 | 705 | 1,160 | 2,400 | 3,000 | ○ |
| 0.62 | approx. 1.5×1.5mm | 370 | 1,005 | 780 | 1,500 | 3,000 | ○ | |
| 0.75 | approx. 2.5×2.5mm | 330 | 660 | 970 | 2,400 | 3,000 | ○ | |
| 0.58 | approx. 1×1mm | 330 | 1,240 | 1,360 | 2,600 | 3,000 | ○ | |
| 1.10 | approx. 4×4mm | 390 | 410 | 1,285 | 2,600 | 3,000 | ○ | |
※ Mesh size values are measured values, not guaranteed specifications.
※ For sizes and specifications not listed above, please contact us.
Inquiries on Specifications & Pricing
We will respond within 1–2 business days. Please feel free to contact us.
Outstanding Properties of Teflon Sheets
Teflon sheets combine seemingly opposite properties that no other material can match.
High Release Performance
The surface of PTFE fluororesin resists adhesion from virtually all substances. Adhesives, resins, and food materials do not bond to it, and any residue can be easily cleaned off or peeled away.
Low Friction & Smooth Conveying
The extremely low friction coefficient minimizes wear and damage to workpieces when used on conveyor belts or low-friction surfaces, enabling stable and smooth material handling.
Stable Operating Temperature Range
- Glass fiber base: −100℃ to +260℃
- Aramid fiber base: −100℃ to +230℃
Excellent Shape Retention
The high rigidity of the woven fiber base minimizes thermal shrinkage and expansion, maintaining stable dimensional accuracy even during continuous use at high temperatures.
The melting point of PTFE is approximately 327℃, but as the material approaches its melting point it becomes too soft for practical use. Therefore, 260℃ is the industry-standard continuous operating temperature (per UL ratings, etc.). Aramid fiber begins to lose strength and carbonize above 230℃, which is why its limit is set lower than glass fiber.
Advantages of Aramid Fiber
In steam environments where glass fiber tends to degrade, aramid fiber base sheets deliver excellent durability due to their superior resistance to hydrolysis (chemical breakdown by water).
Minimizing the Effects of Humidity
The fluororesin coating repels moisture, reducing weight change due to humidity and helping maintain electrical insulation resistance.
Weakness of Glass Fiber: Prolonged exposure to high-temperature steam can break down the "coupling agent" bonding the fiber and resin through hydrolysis, causing the sheet to deteriorate or the coating to peel.
Strength of Aramid Fiber: Its very strong molecular structure gives high resistance to chemical degradation (hydrolysis) caused by moisture. In steam press equipment, service life can be several times longer compared to glass fiber sheets.
Food Safety Compliance
Confirmed to comply with Japan Food Sanitation Act (Act No. 46, 2018) for tools and food containers/packaging (some products excluded). Safe to use in processes where food comes into direct contact.
Chemically Inert — No Effect on Product Quality
The material itself is chemically stable (inert), meaning it is extremely unlikely to transfer odors or any components to food products. Ideal for facilities that require HACCP management.
Environmental Compliance and Safety
Our products do not use any harmful fluorine compounds in their manufacturing process, including PFOS, PFOA, and PFHxS regulated under the Stockholm Convention (POPs Convention). We comply with international environmental regulations such as the EU REACH Regulation and use only materials confirmed to be safe.
Excellent Chemical Stability
Highly resistant to strong acids, strong alkalis, and organic solvents.
Resistance to Degradation
Also resistant to UV radiation and ozone, delivering long service life even in outdoor or special lighting environments.
High-Frequency Insulation
Provides outstanding electrical insulation, making it suitable for high-frequency manufacturing processes and thermal press operations involving electronic components.
Anti-static Option Available
For processes sensitive to static electricity, we also offer an "Anti-static (Black)" version with conductive carbon. Prevents dust adhesion and protects electronic components from electrostatic discharge.
Typical Applications
Teflon sheets solve challenges related to heat, adhesion, and wear across a wide range of industries.
Cover Sheet & Ironing Surface for Flat Press Machines
Prevents fabric from developing shine or scorch marks caused by heat, and stops resin residue from interlining adhesives from building up on the press surface. The low-friction surface significantly improves work efficiency.

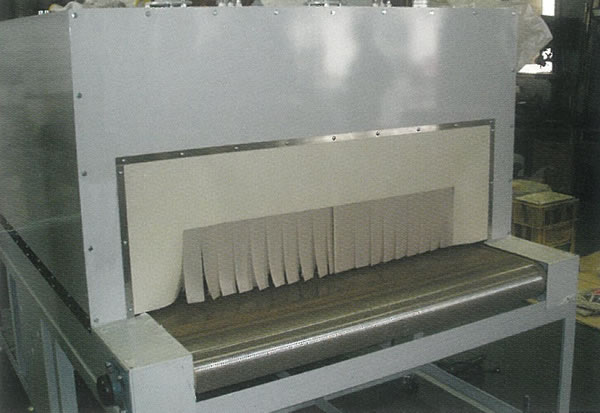

Heat-Insulating Curtain for Shrink Tunnels
Reduces heat loss at tunnel openings and helps save energy. Extremely resistant to heat degradation and maintains flexibility over extended periods.
Release Cover for Heat Sealers (Endless Belt / Cover Sheet)
Prevents film from fusing to the heating element, ensuring clean and reliable sealing results every time.

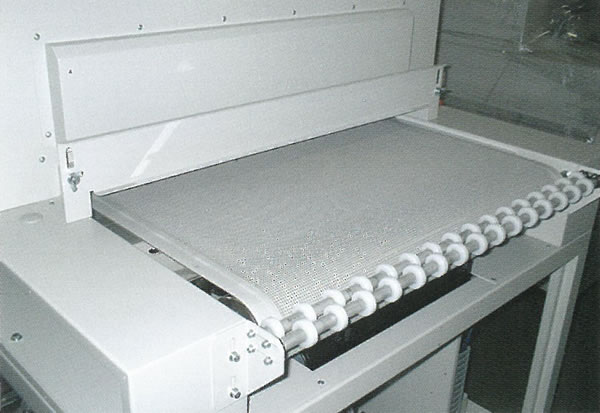

UV / Electron Beam Shielding Curtain
The base material resists degradation even under intense UV radiation and heat, maintaining stable shielding and heat-resistant performance over time.
Conveyor Belt for Drying / Heating Ovens (Mesh Type)
The high air permeability of the mesh type makes it ideal for hot air drying and processes involving moisture evaporation.
Press Cover for Non-woven Fabric, Plastic & Rubber Molding
Ensures smooth release of molded products during hot press operations and minimizes contamination of molds and heated platens.
Laminate Press for Solar Panel Manufacturing
Prevents adhesion of EVA resin and similar materials while supporting uniform pressure. Provides durability to withstand demanding heat cycle conditions.
Release & Conveyor Sheet for Food Manufacturing
Even sticky food materials such as candy, chocolate, and bread dough release cleanly without any oil or grease. Food safety compliant and reliable in hygiene-sensitive environments.

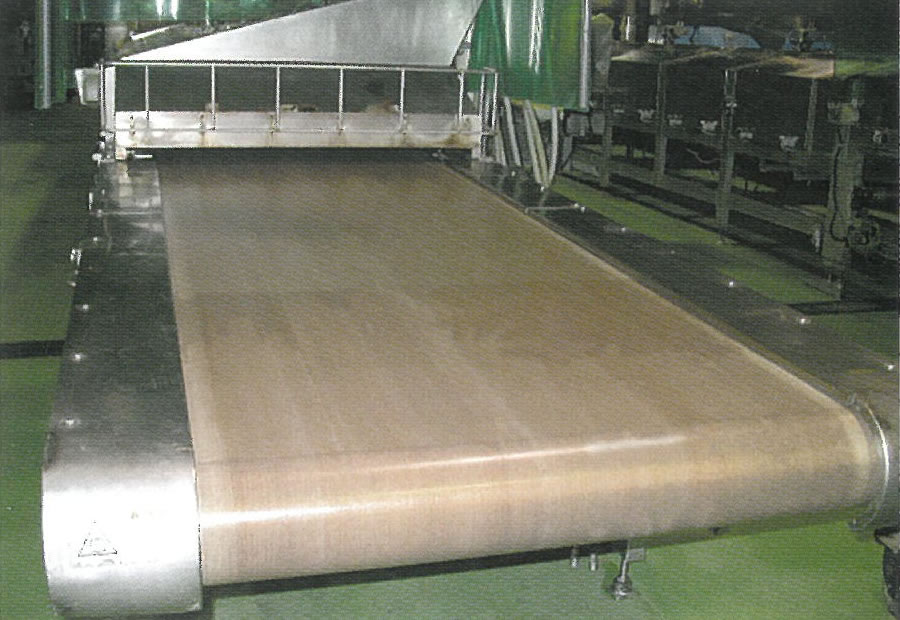

Steam Convection / Steaming Process (Aramid Fiber Type)
The aramid fiber base resists moisture, preventing hydrolysis degradation in steam environments.
Press Cover for Plywood & Building Material Manufacturing
Prevents adhesive from sticking to press surfaces and delivers a smooth, clean finish. Built to withstand repeated high-load and high-temperature press cycles.
Why Choose Sakae Trading?
"Can't find a replacement for a discontinued product?" "Want to maintain quality while reducing costs?" — We help solve the problems you face in your workplace.
Custom Sizes
We cut sheets to your exact dimensions — giving you the right size for your needs, at a quantity that's easy to order, with no unnecessary waste.
Ready-to-Use Processing
We don't just supply cut sheets. We can also process them so they are ready to install immediately.
- Eyelet & Pin Guide Installation (for smooth fitting on equipment)
- Sleeve Processing (folded edges to insert a rod or core)
- Reinforcement Processing (extra support in high-stress areas)
Start with a Consultation
We carefully listen to your application and requirements, then recommend the most suitable sheet. Whether you need a replacement for a discontinued product or want to reduce costs while maintaining the same specifications, please feel free to get in touch.
Inquiries on Specifications & Pricing
We will respond within 1–2 business days. Please feel free to contact us.
This is the sheet consists of Glass or Aramid fiber fabric coated by PTFE(Teflon) resin. It has the strength of fiber and various functions of PTFE resin such as heat resistance, non-adhesiveness, sliding property and chemical resistance.
Sheet type
- Plain Weave Type
- Mesh Type
Both types have standard one (beige) and anti-static ones (black/white) .
Features
PTFE Coating
Non-Adhesiveness & Sliding properties.
Safety
Our product conforms to Japanese Food Sanitation Act specifications and standards. (Notification No. 370 of Japanese Ministry of Health and Welfare, 1959)
Heat & Cold Resistance Temperature
Can be used in a wide temperature range.
- Glass fiber fabric：-100℃ to 260℃
- Aramid fiber fabric：-100℃ to 230℃
Water resistance property
Aramid fiber fabric has excellent water resistance. Good for steaming process.
Example of Use
- The cover sheet for Flat press machine in the garment factory.
- Insulation curtain of shrink tunnel in the packing industry.
- Shading curtain of ultraviolet drying machine in print industry.
- To make Conveyor belt with heat-resistant, non-adhesiveness, sliding properties and chemical resistance.
- Cover sheet of press machines for non-woven fabric, plastic/rubber products, and solar cells.
- To improve the releasing ability in the baking/defrosting/steaming processes in the food industry.
- Cover sheet for Plywood-making machine in the wood processing industry.
