Gas Meters & Air Meters

Aichi Tokei Denki


Founded in 1898 as a watch manufacturing company. Aichi Tokei Denki Co., Ltd. is a long-established manufacturer that mainly manufactures water meters and gas meters that utilize precision processing technology. High accuracy and robustness that can withstand long-term use are the characteristics of Aichi Meter. We export diaphragm gas meters, turbine gas meters, and ultrasonic flow meters mainly in Southeast Asia.
ISO9001 and ISO14001 certified.

Middle Pressure Gas Meters

AICHI TOKEI DENKI MIDDLE PRESSURE GAS METERS AH7 AH15

AH7/AH15

Model AH5 AH7 AH10 AH15
Flow Range 0.25-5m³/h 0.35-7m³/h 0.5-10m³/h 0.75-15m³/h
Connection 20A 32A 40A
Dimension H262xW195xD158(mm) H341xW300xD215(mm)

Turbine Gas Meters

AICHI TOKEI DENKI TURBINE METERS TBX

TBX

AICHI TOKEI DENKI TURBINE METERS TBZ

TBZ

Model TBX30 TBX100 TBX100F TBX150F TBZ60 TBZ150 TBZ300
Flow Range 4-30m³/h 10-100m³/h 10-100m³/h 12.5-150m³/h 6-60m³/h 12.5-150m³/h 30-300m³/h
Connection Screwed Flange Flange
Rc1 1/2, Rc1 1/4 Rc2 JIS 10K 50A JIS 10K 40A JIS 10K 50A JIS 10K 80A

Ultrasonic Gas Flowmeters

AICHI TOKEI DENKI ULTRASONIC GAS FLOWMETERS UX15

UX15

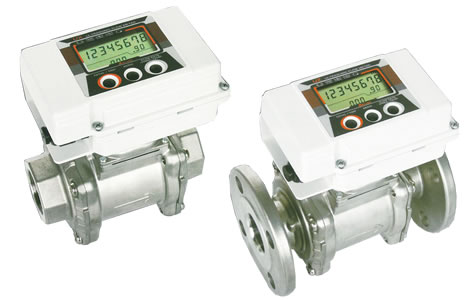

AICHI TOKEI DENKI ULTRASONIC GAS FLOWMETERS UX/UZ

UX/UZ

Model UX15 UX40 UX50 UZ40 UZ50
Flow Range LPG 0.12-6m³/h 1.6-80m³/h 3-80m³/h 1.6-80m³/h 3-80m³/h
Town gas, Nitrogen, Argon 3-150m³/h 3-150m³/h
Max. Pressure 100kPa 500kPa
Connection Screwed Flange
Rc1/2 Rc1・1/2 Rc2 JIS 10K

Ultrasonic Air Flowmeters

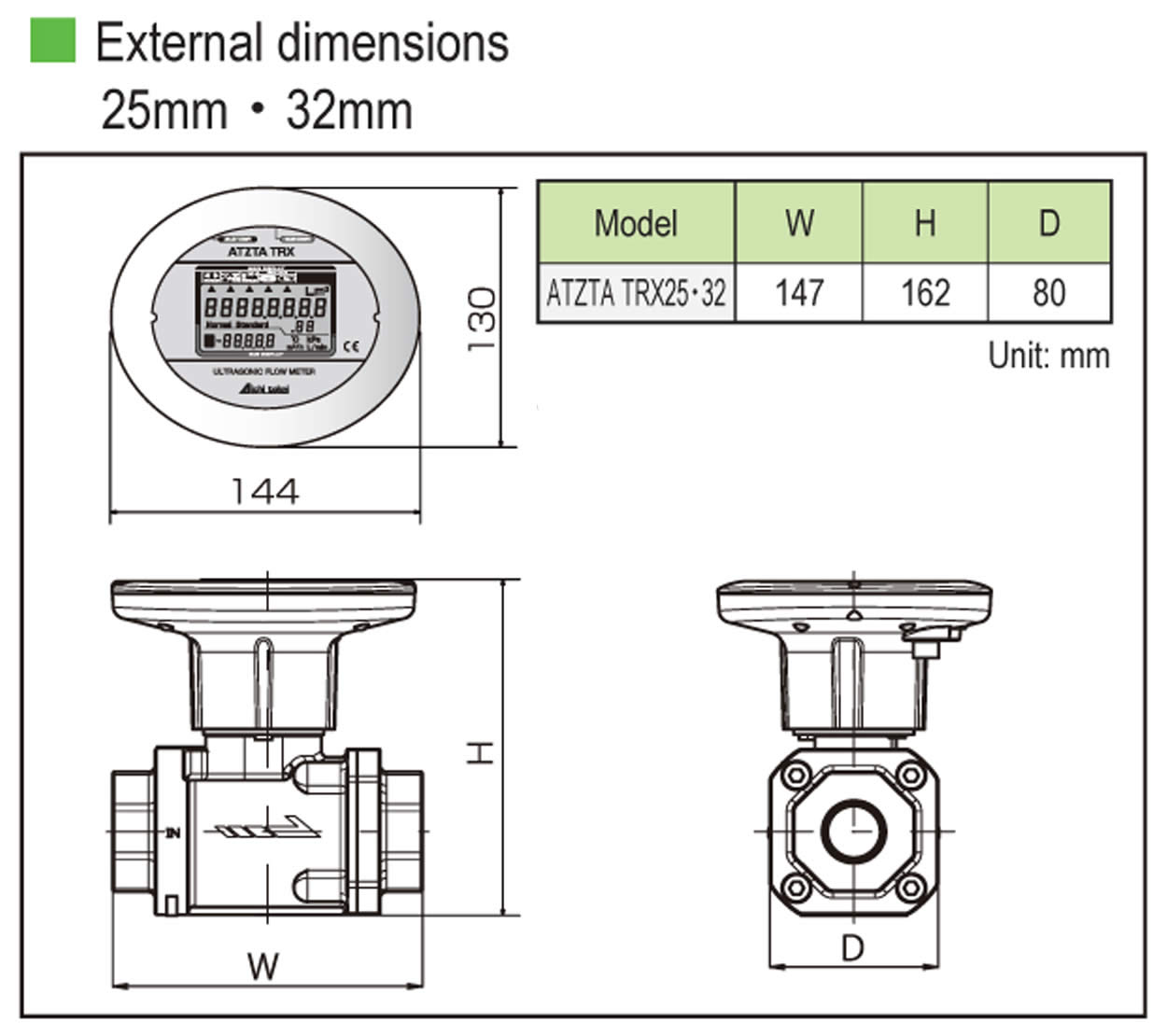

AICHI TOKEI DENKI TRX air meter AICHI TOKEI DENKI TRX air meter

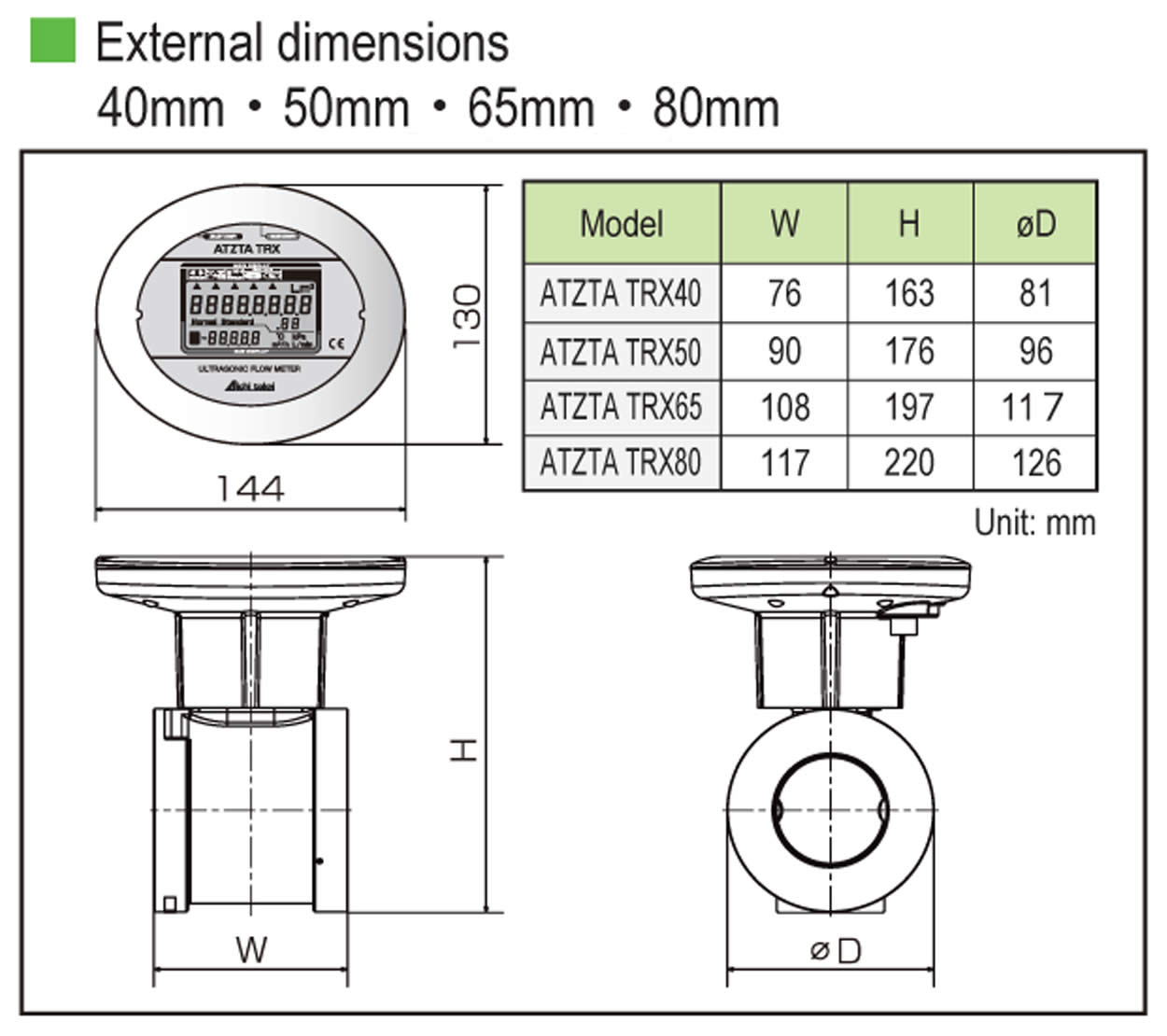

AICHI TRX dimension AICHI TRX dimension

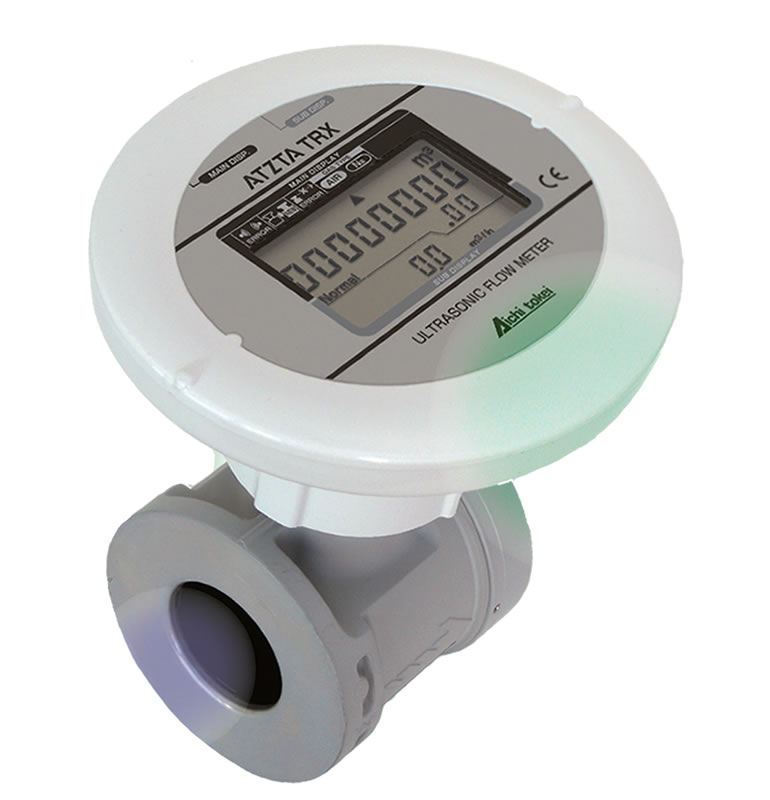

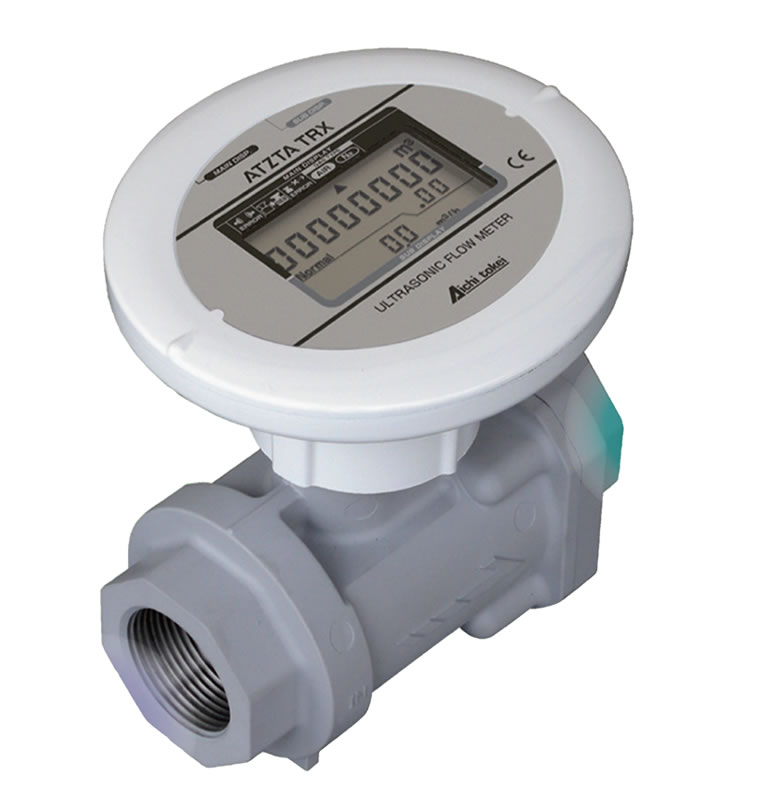

TRX

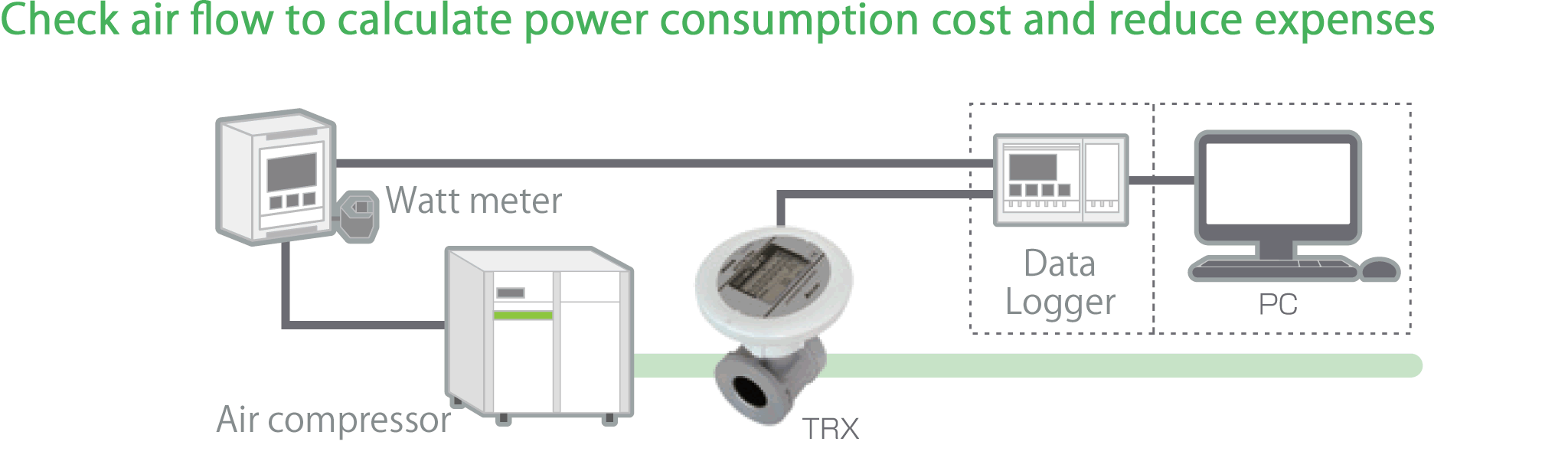

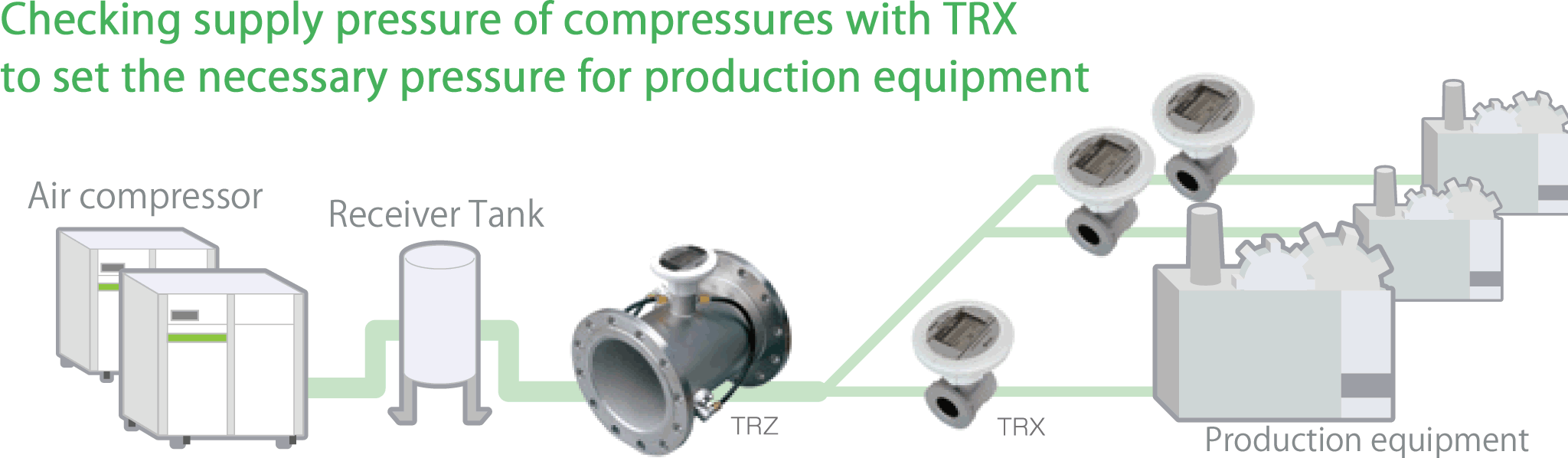

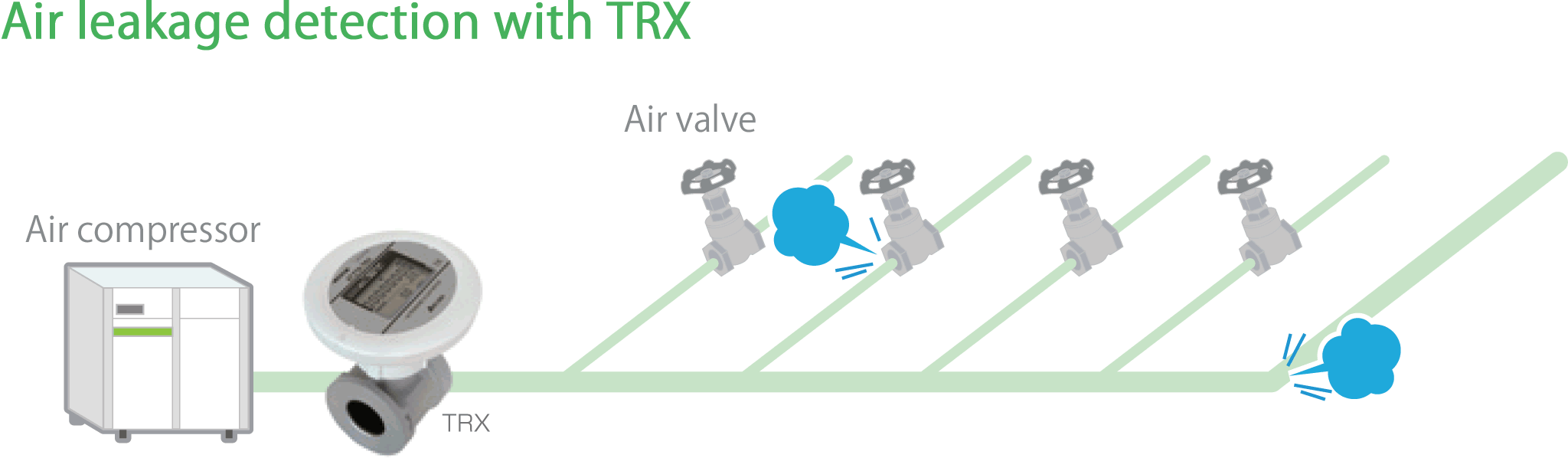

Air leakage detection with TRX Checking the pressure of compressor air with TRX and TRZ Checking compressor air flow with TRX

Connection

Model TRX25 TRX32 TRX40 TRX50 TRX65 TRX80
Flouid Air (mainly factory air) or Nitorogen
Actual flow rate +/-0.6-35m3/h +/-1.1-65m3/h +/-1.3-80m3/h +/-2.5-150m3/h +/-4-240m3/h +/-5-300m3/h
Connection Rc1 Rc1-1/4 Wafer (put into place between JIS10K flanges)

TRX works for ;

  • Early detection of air leakage.
  • Early detection of dropping of discharge air pressure.
  • Early detection of energy loss by exceeded discharge pressure.
  • Especially, recommend to the production line with the air compressor of 75kW or more.
